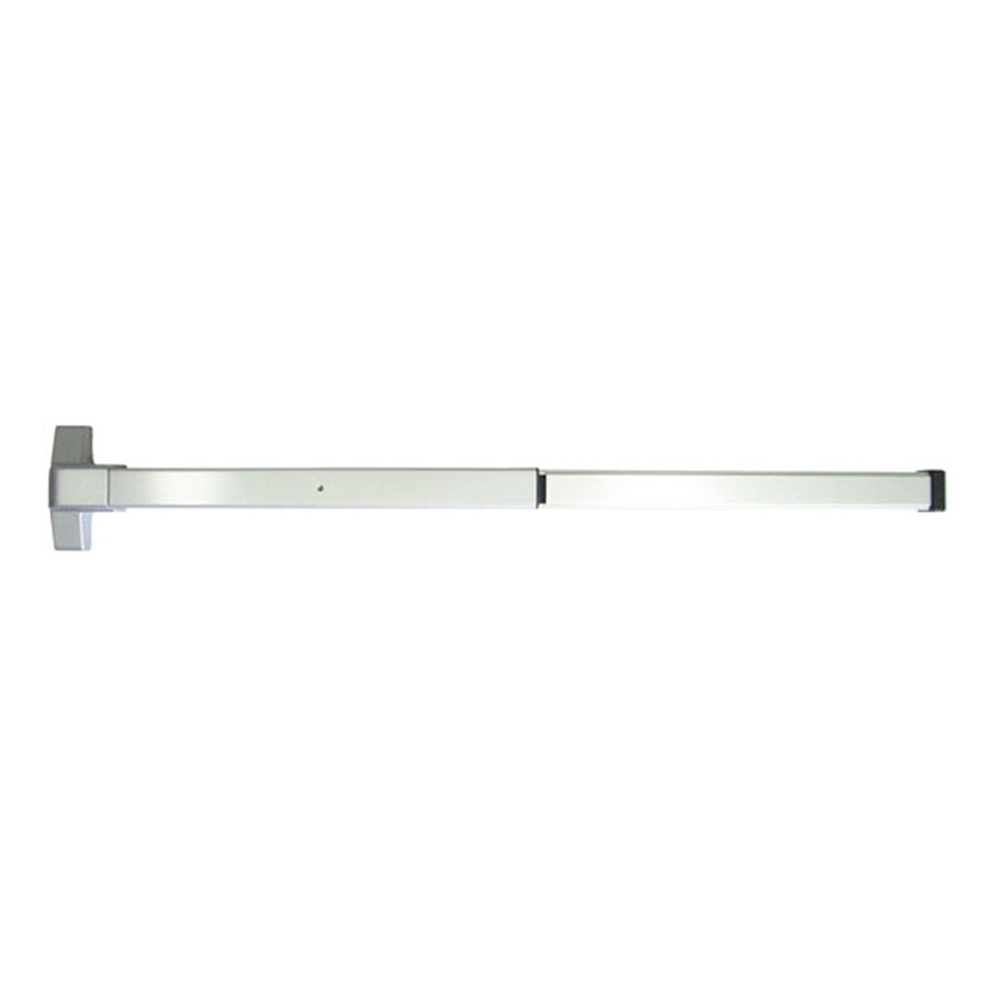

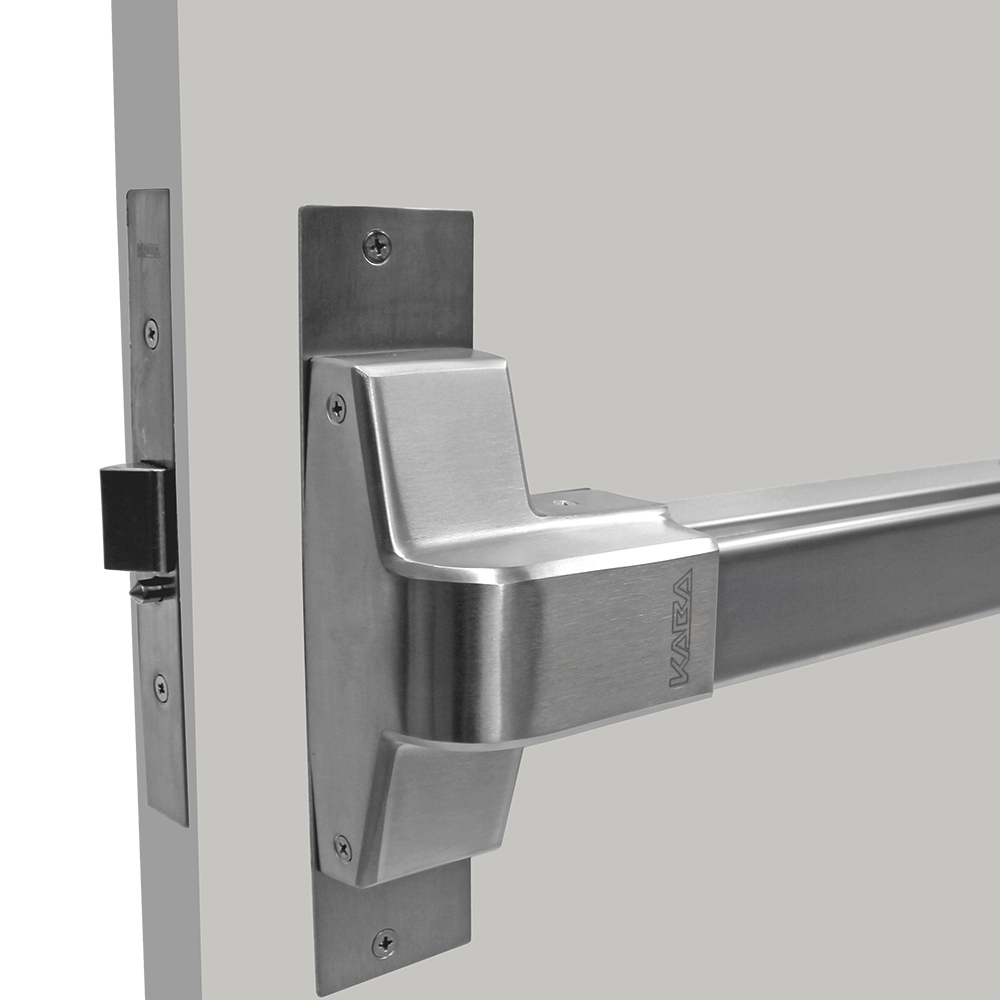

Kaba Mortice Panic Exit Device
ED22MSSS

Panic Exit/Bar are push bars/crash bars installed on exit doors to allow quick exiting of buildings. (e.g. where emergency or panic situation could occur)

Panic Exit/Bar Function - Operated by a horizontal push bar, which when pushed in a downward arc withdraws either the bolts or latch, releasing the door for immediate escape in the event of an emergency.

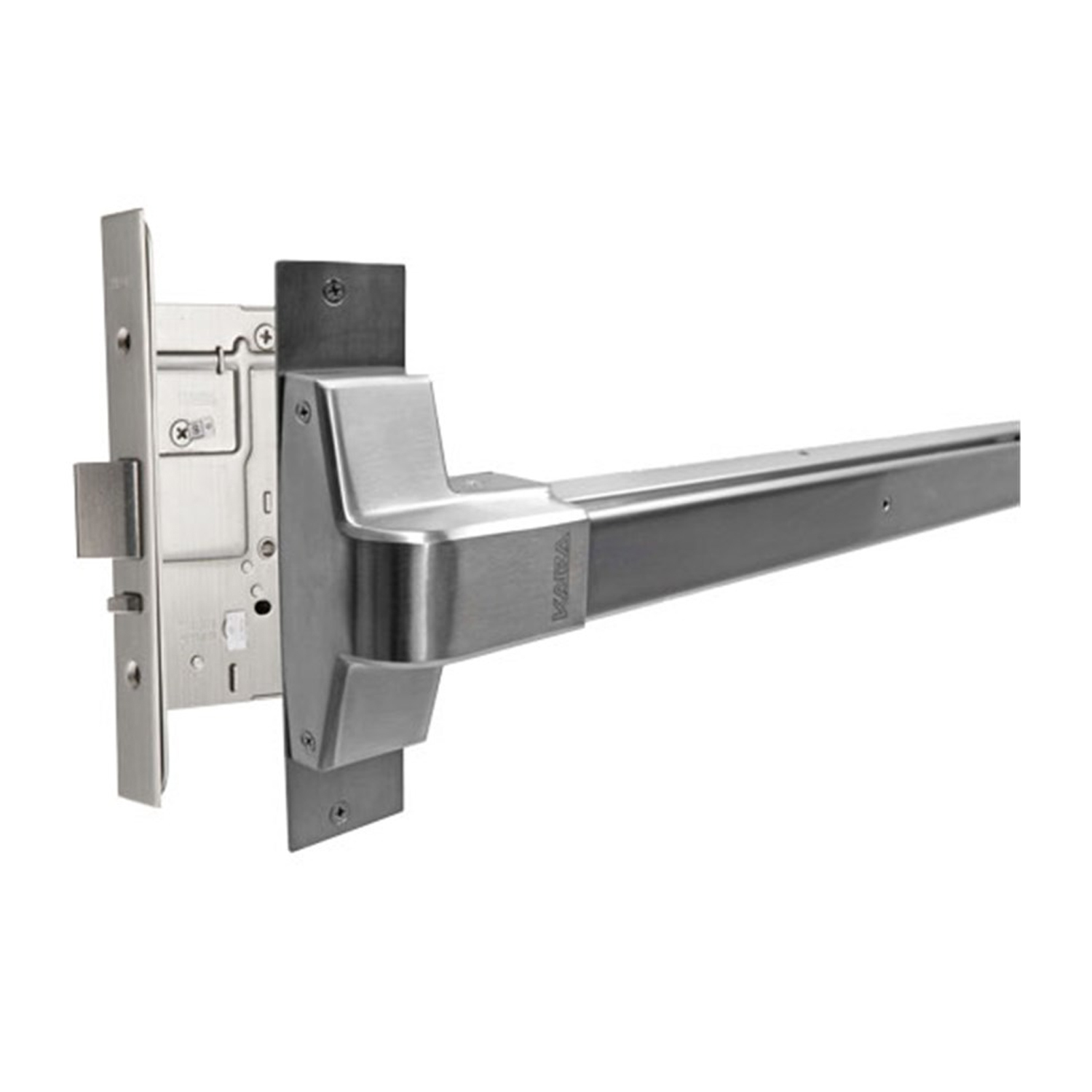

• Designed to operate in conjunction with the renowned Kaba MS2 mortice lock.
• Offers all the security functions of the MS2 mortice lock whilst providing a fast and convenient means of escape in the case of an emergency.
• Supplied with convenient mounting plates, providing fast, secure and easy thru fixing to timber doors

Features:

• Horizontal fitting.

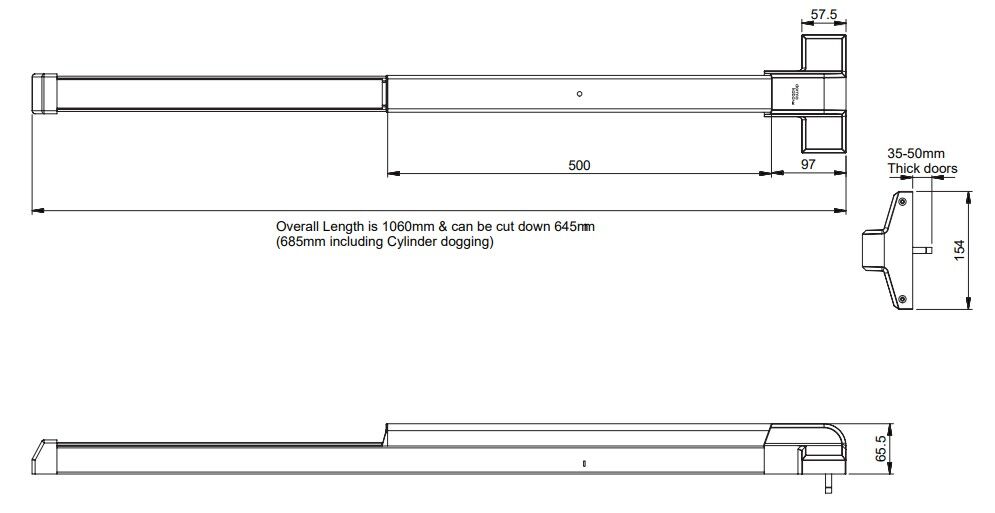

• Can be field sized to 645 mm minimum length.

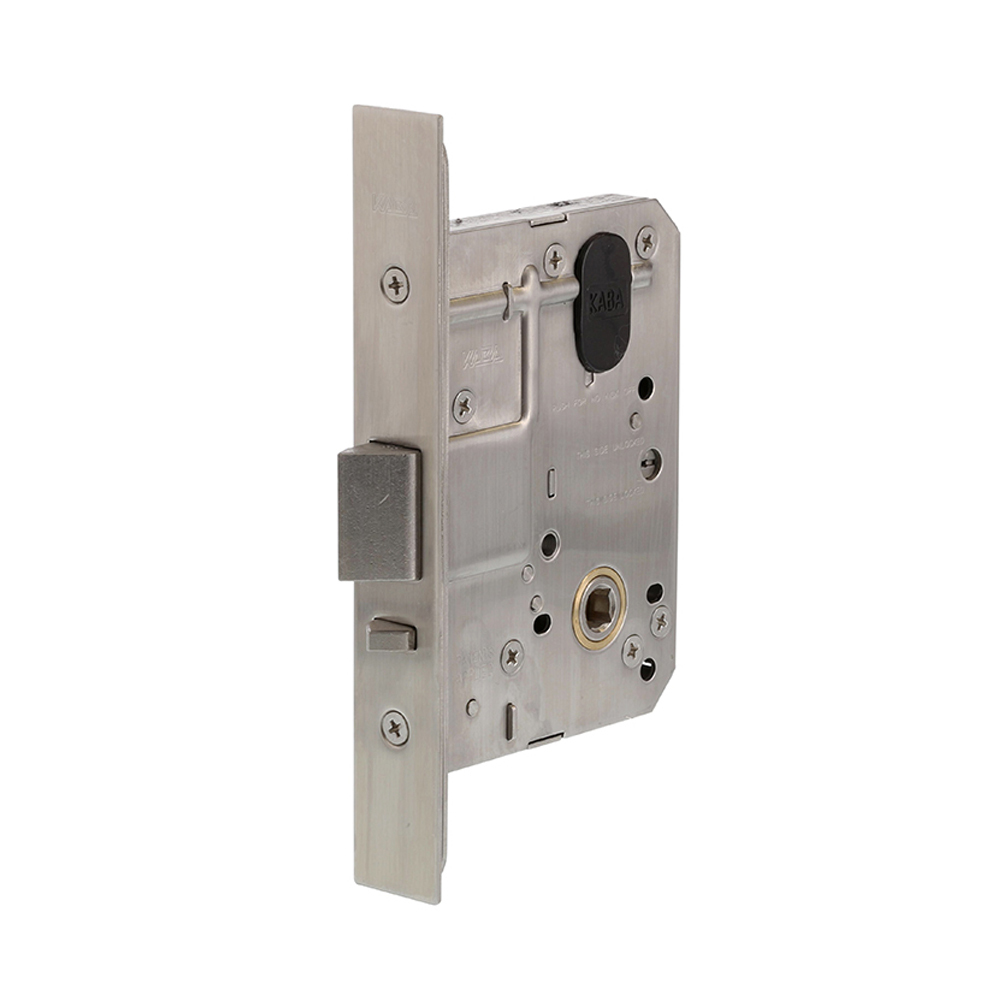

• Supplied complete with mortice lock (MS2ED).
• Mounting plates and thru fixing screws (supplied).
• Field selectable handing.
• Hex (Allen) key type dogging supplied as standard.

Specifications:

• Door Thickness: 35mm to 50mm
• Mounting:
  • Timber
  • Metal or Aluminium
• Standard Lenght: 1060mm
• Has Dogging: Yes
• Horizontal Locking With Mortice Lock: Yes
• Fire Rated: No
• Handing: Reversible
• Finish: Satin Stainless Steel
